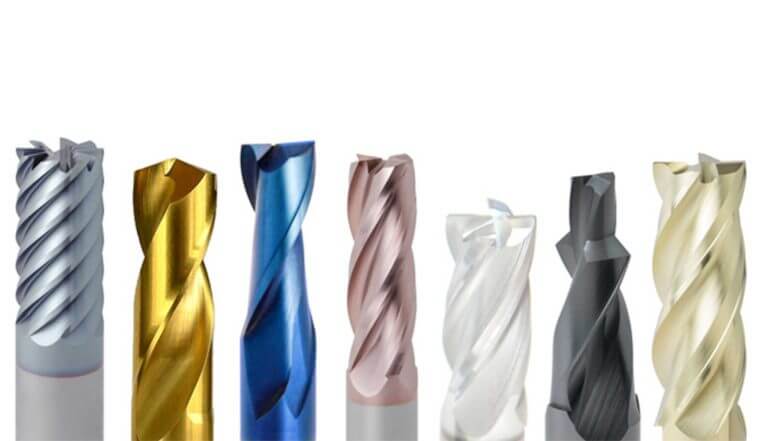

PVD COATINGS
Physical vapour deposition (PVD) is used to describe any of a variety of methods to deposit thin films by the condensation of a vaporized form of material onto various surfaces. The metallic elements of the layers consisting of titanium, chrome and aluminum, make a connection to nitrogen and carbon under the impact of a plasma and temperatures of 200 °C to 500 °C. They provide a strong ceramic in this way. The hardness of generated layers are in a range of 1000 to 3800 HV, the coating thickness is between 1 to 10 µm, depending on use.
The PVD hard material coating is carried out at eifeler almost exclusively by means of arc vapor deposition (electric arc vapor deposition ) with temperatures < 450 degrees centigrade. With the arc process technology an excellent adhesion is achieved without hardness loss, distortion or change of the micro-structure of the base material.
Search the voestalpine eifeler coating selection guide to find the coating solution that fits your application..
CrN/CrCN – chrome nitride/chrome carbon nitride for high level of adhesion
For details on our full North American eifeler coatings network please visit:
https://www.eifeler.com/northamerica/en/
voestalpine eifeler Coatings
EDRO Engineering, INC.
20492 Carrey Road
Walnut,California 91789
Tel: 909-594-5751
coatings@edro.com
Downloads
The following advantages result for you:
Some of the industries we serve:
- Possible combinations with friction reducing layers
- Variable coating structure (nanostructures, multi-layer, monolayer)
- Decoating by chemical and mechanical means
- Very good adhesion on the substrate
- Very good reproduction of textured and polished surfaces
- Very good maintenance of dimensional accuracy and contour-true coating
- No hardness reduction
- No influencing of the crystalline structure of the steel with suitable material selection
- Stamping and forming
- Aluminum die casting
- Plastic Injection molding
- Cutting tools
- Cosmetic coatings
- Knives and firearms
- Aerospace
- Medical
